High protection against moisture and dust
The hood covers the top and sides of the pallet, creating a much more complete barrier against rain, dirt and outdoor storage.

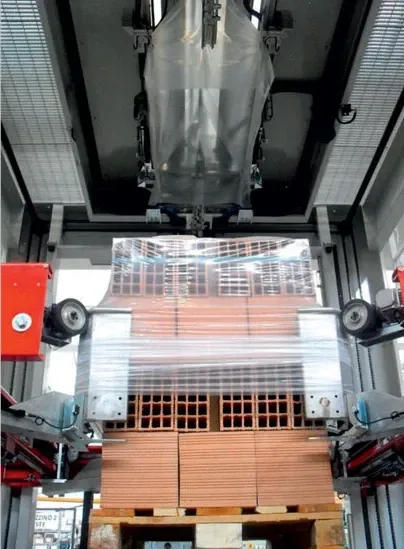

Stretch Hood hooding
Stretch Hood for pallets with maximum protection and high throughput
Protect palletized loads with a high-performance stretch hood that improves stability, outdoor resistance and the final appearance of the pallet.
Our system applies a stretch tubular hood that adapts to the pallet contour without heat, improving stability, weather sealing and the final presentation of the load.
120
pallets/hour
50%
potential savings in consumables and energy
5/5
protected load faces
360°
brand and label visibility
Stretch Hood process
What is Stretch Hood?
Stretch Hood is an automatic hooding system that applies a stretch tubular hood over the palletized load. The machine forms the hood, opens it, stretches it and applies it from the top so the film wraps the pallet with even tension, delivering protection, stability and a clean finish.

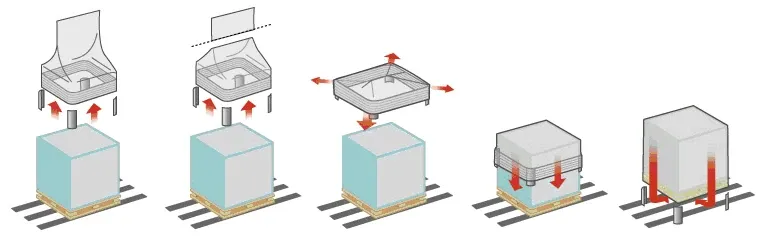

How the machine works
- 1 Hood forming: the system prepares the exact length of tubular film according to the load height and dimensions.
- 2 Hood cutting: the machine accurately separates the film length required for each hooding cycle.
- 3 Opening and stretching: the hood is mechanically opened and stretched to match the pallet format.
- 4 Top application: the machine lowers the hood over the load from above with precise motion control.
- 5 Final adjustment: the film recovers tension, grips the unit load and leaves the pallet protected, stable and easy to read from the outside.
Stretch Hood advantages
Main advantages of Stretch Hood technology
Greater load stability in transport
The uniform film tension holds the unit load together and reduces movement, deformation or openings during handling and shipment.
Heat-free process with lower energy demand
Because it does not require thermal shrink, energy consumption is reduced and installation is simpler than gas or oven-based solutions.
Clean finish and strong readability
Stretch Hood film provides a more uniform presentation with useful transparency for branding, labels and barcode reading.
Technology built for demanding end-of-line operations
It is an especially solid solution when high volumes, harsh logistics conditions or standardized packaging quality are required.
Technical features
Technical features
- • Maximum load height: 2,500 mm / Custom
- • Output: Up to 120 pallets/hour
- • Maximum load: 2,000 kg / Custom
- • Maximum pallet diagonal: 1,700 mm
- • Film thickness: 60 to 140 microns
- • Number of reels: 1 to 3 reels
- • Designed in accordance with ISO 12100 and CE requirements
- • Industrial construction for intensive operation
FAQ
Frequently asked questions about Stretch Hood
When should Stretch Hood be chosen over a wrapping machine?
When the load also needs top protection, will be stored outdoors or requires higher stability with better sealing.
Does Stretch Hood always replace shrink hooding?
In general it is a cleaner and more efficient alternative, with significant savings in materials and energy, but the final choice depends on pallet geometry, throughput and the required protection level.
Can it be integrated into an existing automatic line?
Yes. It is usually studied as part of the end-of-line project so it can be integrated with transport, strapping, palletizing and dispatch systems already present in the plant.
For all types of industries
Let us review your Stretch Hood project
We analyse your references, production rate, required protection and integration with the rest of the end of line to define the most suitable solution.
