Choosing the right pallet packaging system has a direct impact on load stability, material consumption, end-of-line productivity and the final presentation of the product during transport. In today’s industry, the three most widely used methods are the stretch wrapper, stretch hood and shrink wrapping. Although all three pursue the same goal, they do not respond in the same way to production speed, logistics conditions or protection requirements.
In this article, we compare the three systems from a technical and operational perspective to help you decide which solution best fits your installation.
Why choosing the right pallet packaging system matters
Not all pallets behave in the same way. A tall, light and unstable load does not require the same solution as a compact pallet intended for outdoor storage. Likewise, a line running at moderate speeds with several product formats is very different from a 24/7 high-output operation. That is why the system should not be selected based only on initial investment, but on the balance between several factors:
- Load stability during transport and handling.
- Protection against dust, moisture, rain or UV exposure.
- Film consumption and operating cost per pallet.
- Production speed and end-of-line continuity.
- Flexibility for changes in format or palletising pattern.
- Process safety and energy requirements.
When these criteria are assessed correctly, packaging stops being a secondary final stage and becomes a strategic part of automation.

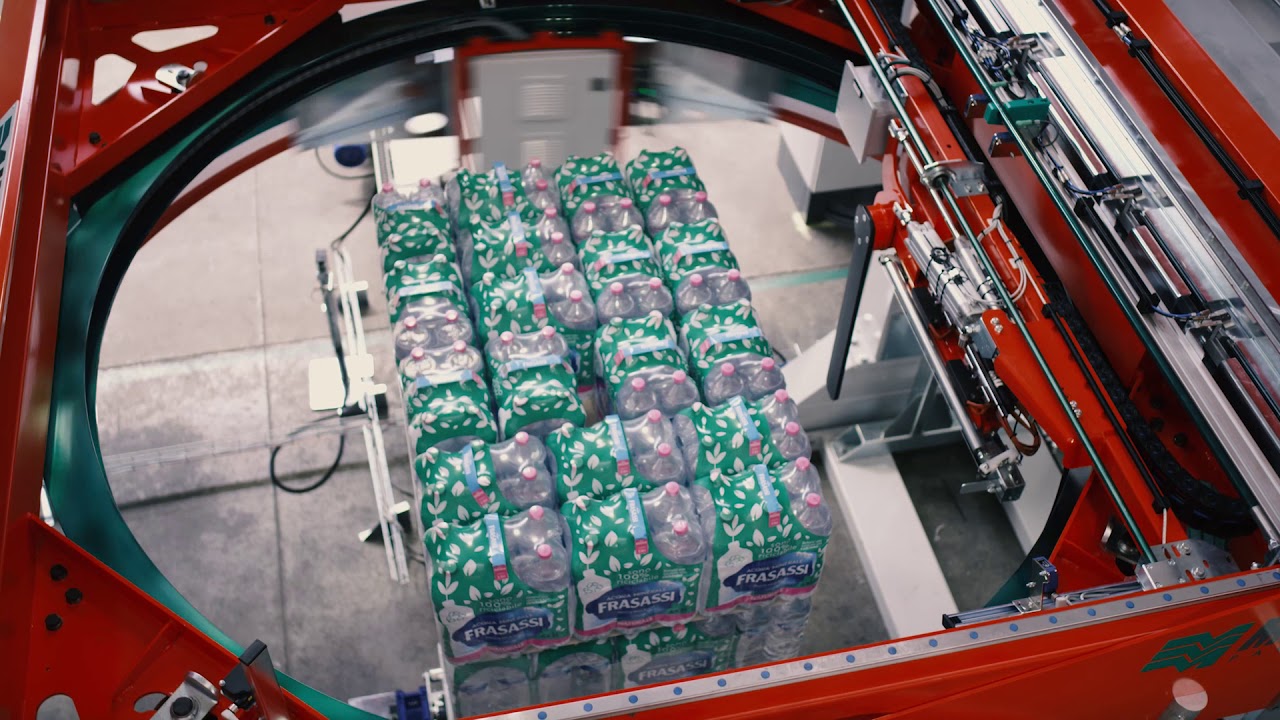

Stretch wrapper: the most versatile solution
The stretch wrapper is, in many industrial environments, the most common technology. The system applies stretch film around the load to compact it and improve stability. It can operate in semi-automatic or automatic versions and adapt to different production levels.
Its main strength is versatility. It is a very effective solution when there is a wide range of products, frequent format changes or the need for a controlled investment. It also makes it possible to adjust cycles, number of wraps, film tension and reinforcement in specific pallet areas.
Advantages of the stretch wrapper
- High adaptability to different load types.
- Easy integration into automatic or semi-automatic end-of-line systems.
- Good balance between investment cost and performance.
- Possibility of optimising film consumption with pre-stretch carriages.
- Suitable solution for many standard shipping applications.
Limitations of the stretch wrapper
- Protection against rain or outdoor storage is lower than with other systems.
- Highly unstable loads or complex edges may require additional reinforcement.
- In high-output applications, depending on the model, performance may remain below other technologies designed for continuous productivity.
If your priority is a flexible solution with solid overall efficiency and broad format compatibility, an industrial pallet wrapping system is usually the first technology to evaluate.

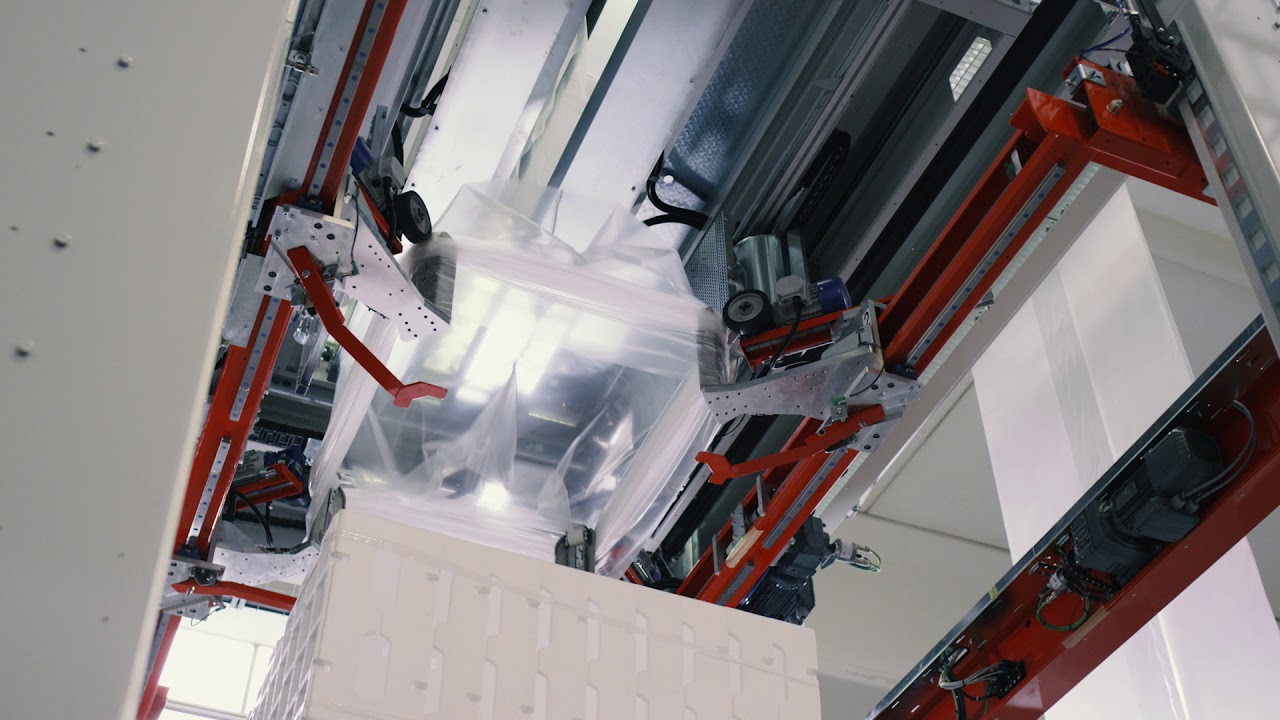

Stretch hood: maximum protection and high stability without heat
The stretch hood system uses a highly elastic tubular film hood that is stretched and applied over the load from above. The hood then recovers tension and grips the pallet evenly. It is a technology especially valued when the objective is to combine containment, protection and finish.
One of its main strengths is that it provides broader coverage than conventional wrapping. The load is protected on the sides and on the top, which improves performance against dust, moisture and outdoor exposure. In addition, because it does not require heat, it avoids the energy consumption associated with a shrink frame or tunnel.
Another important factor is film transparency, which often improves product visibility and the reading of labels or barcodes in logistics and distribution operations.
Advantages of stretch hood
- Excellent load stability thanks to uniform film tension.
- Very good protection against moisture, dirt and outdoor conditions.
- Clean pallet presentation and strong product visibility.
- High throughput for continuous automatic production lines.
- Process without heat input, with less energy impact than shrink wrapping.
Limitations of stretch hood
- Requires a higher initial investment than many stretch wrappers.
- Its profitability is greatest in stable-volume, continuously automated operations.
- The load geometry must be studied carefully to ensure optimum hood application.
In sectors where the pallet must travel well protected or be stored outdoors, stretch hood and industrial hooding solutions usually offer a clear advantage.
Shrink wrapping: full protection and strong performance for demanding applications
Shrink wrapping for pallets applies a film hood or cover and then uses heat to shrink the material until it fits tightly around the load. It is a well-established system in applications where very strong overall protection and robust load unitisation are required.
Its performance is especially useful when the product must withstand harsh handling, long storage periods or demanding logistics conditions. Coverage is complete and the final result delivers a high level of physical protection.
It is also a particularly effective solution for logistics picking. When a pallet combines different references, uneven heights or irregular geometries, the film shrinks and adapts very closely to the real contour of the load. That close fit helps contain protrusions, level changes and less uniform configurations, all of which are common in order picking operations.
Advantages of shrink wrapping
- Full pallet protection, including the top.
- Very good resistance for demanding transport and storage conditions.
- Firm film fit to the geometry of the load.
- Very suitable for picking pallets and irregular loads.
- Appropriate system when protection matters more than flexibility.
Limitations of shrink wrapping
- Requires heat input, with higher energy consumption and greater operational demands.
- Maintenance can be more influenced by the thermal part of the process.
- Product and code visibility may be more limited than with stretch hood.
- In some lines, overall speed and efficiency may be less favourable than with stretch hood.
Shrink wrapping remains an effective technology when full pallet protection is the highest priority and the production environment justifies that level of coverage.

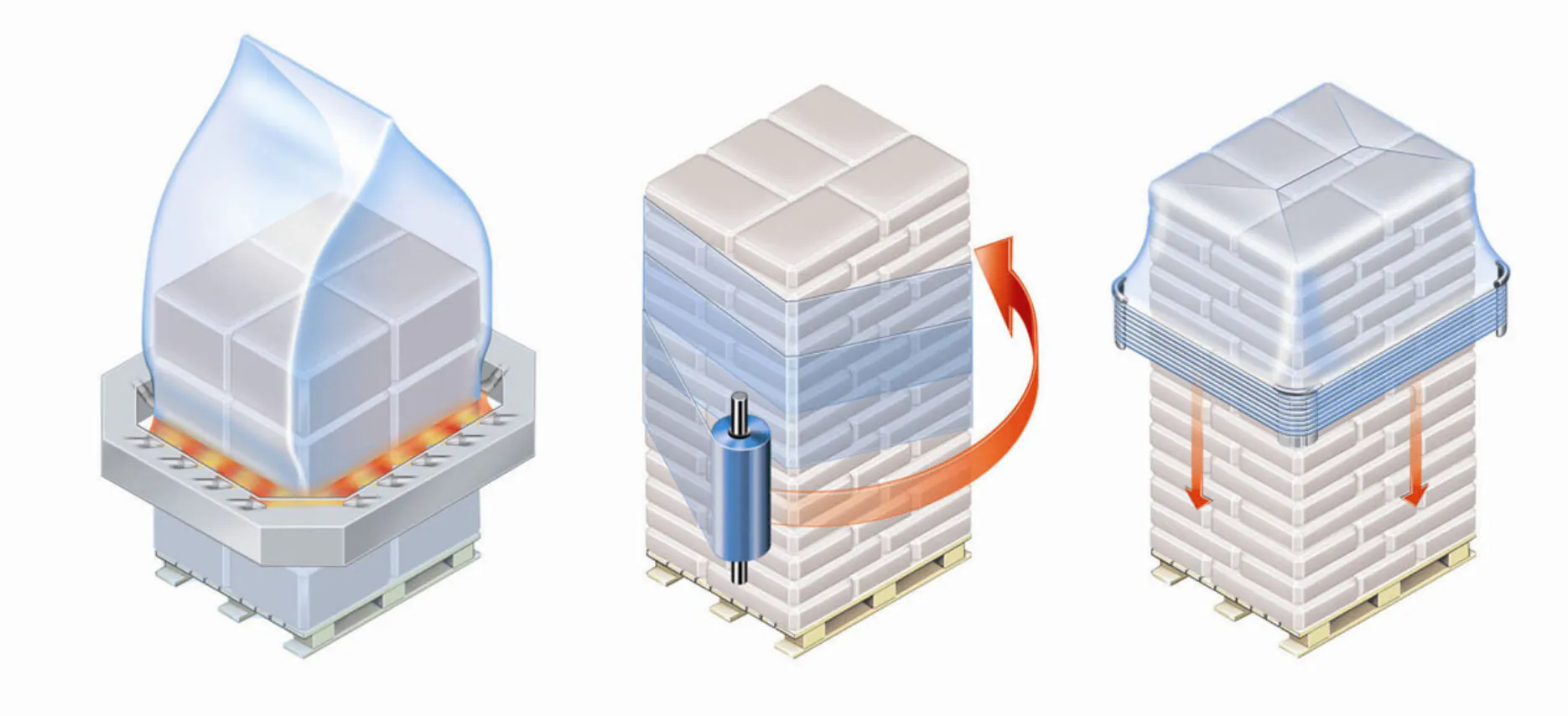

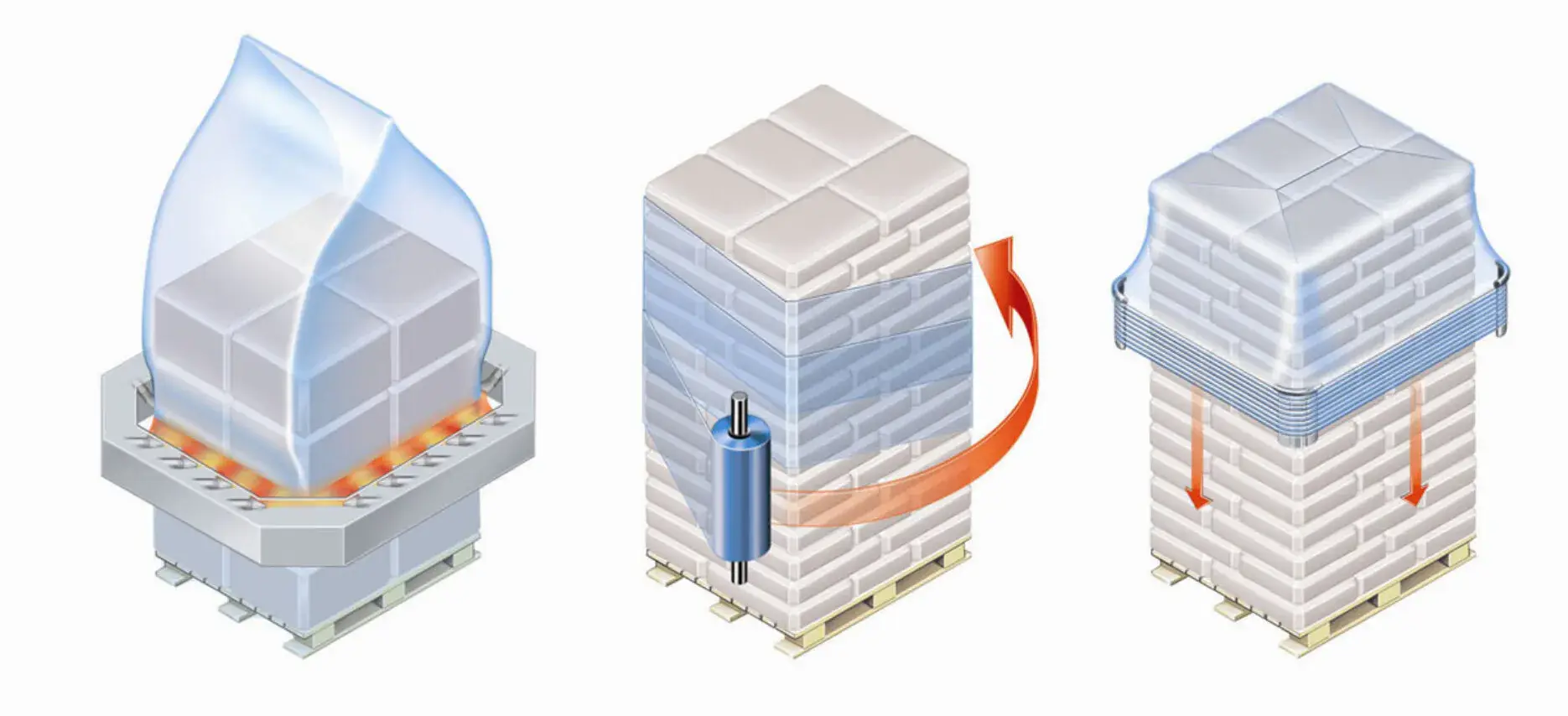

Practical comparison: what distinguishes each method
If we compare the three systems from an operational point of view, the summary would be:
- Stretch wrapper: stands out for flexibility, controlled cost and easy adaptation to varied formats.
- Stretch hood: excels in outdoor protection, stability and productivity without heat.
- Shrink wrapping: offers very complete protection and excellent conformity on irregular loads, in exchange for higher energy demands.
In other words, there is no universally best method; there is the method that best fits each load type and each end-of-line requirement.
Which pallet packaging system suits your application?
Choose a stretch wrapper if…
- You work with several pallet formats.
- You need a flexible and scalable solution.
- You want to automate without going straight to the highest investment.
- Your load does not require a fully closed top cover.
Choose stretch hood if…
- You need protection against moisture, dust or outdoor exposure.
- You have an automatic line with medium or high output.
- You want to improve pallet stability and presentation.
- You want to avoid the thermal consumption of a hooding process.
Choose shrink wrapping if…
- Full protection is critical for the product.
- You work with picking pallets or loads with irregular geometry.
- The pallet will undergo harsh handling or storage conditions.
- The application justifies the use of heat because of the required coverage.
- Final packaging strength is the main decision factor.
Frequently asked questions about stretch wrappers, stretch hood and shrink wrapping
Which system protects a pallet best outdoors?
In general, stretch hood and shrink wrapping provide better outdoor protection than a conventional stretch wrapper because they also cover the top of the load. Between the two, the best choice depends on the required protection level and the acceptable operating cost.
Which method is usually the most flexible for different formats?
The stretch wrapper with stretch film is usually the most flexible option when the same installation handles a variety of heights, footprints and palletising patterns.
Which system can be more efficient on high-output automatic lines?
In many cases, stretch hood offers a very competitive balance between stability, protection and continuous output. Even so, the right decision depends on the product, the layout and the logistics objective.
Conclusion: the best choice depends on the product and the end of line
Comparing stretch wrappers, stretch hood and shrink wrapping is not just a matter of placing three technologies side by side. The right decision comes from analysing the load type, production speed, required protection level, energy cost and the customer’s logistics strategy.
At Robotec Packing, we study each end-of-line project to define the most suitable solution according to the product, throughput and working environment. If you are evaluating which system to implement, we can help you compare alternatives and design a solution tailored to your plant. In the meantime, you can learn more on our industrial wrapping and pallet hooding with stretch hood or shrink film pages.
